CLN-01 |

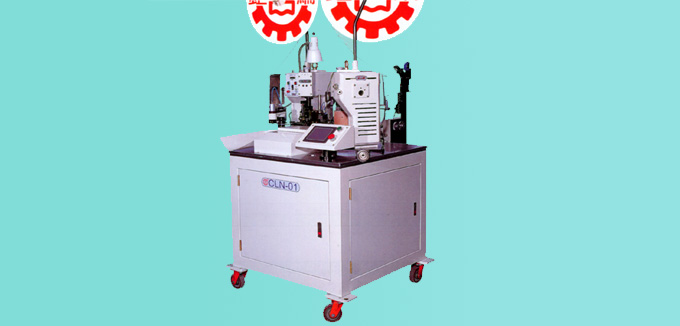

全自动端子压著机（双头）
特点
· 剥皮长度变化方式，采用全萤幕电脑触控方式调整，变换剥皮长度快速又方便。
· 采用伺服马达控制系统完成定寸、裁线、剥皮等动作使精度更准确，操作更简单、性能更稳定。
· 端子压著位置采用面板触控调整端子压住位置。
· 端子压著高度调整采用快速调旋纽，每格精度0.02mm，免用工具用手即可调整，精确方便。
· 端子有100组记忆功能，可缩短更换线材调整之时间。
|
|
Full Automatic Terminal Crimping Machine
FEATURES
· Contact full screen operations display.The wire strip length can be adjusted on the main control panel.
· The wire length quantity and number of lots can be set,and cut deep and strip length can be adjusted with 8 axle center.
· Thecrimping seat contact full screen.
· Fast maunal tension adjustment with micro knob(in cells of 0.02mm)without any tool.
· The 100 sets of memory files can be saved or retrieved for required actions. |
规格
| 功能 |
电线尺寸切断、单端剥皮、双端剥皮、单端半剥、双端半剥、单端压著、双端压著、单端扭线（需另选够扭线器） |
| 电源 |
AC 220V 50/60Hz 三相 |
| 操作方式 |
手动、单行程动作以及自动（连续） |
| 速度 |
3000条/小时（300长以内） |
| 切断长度 |
56mm～9.999mm标准 |
| 切断精度 |
双动范围1mm+切断长度*0.2%以下 |
| 剥皮长度 |
NO.1、NO.2侧0 mm～10mm |
| 剥皮深度 |
100步2.4mm（1步=0.024mm） |
| 电线规格 |
AWG#18～AWG#34(标准） |
| 空气压力 |
5～6Kgs（需使用清洁干燥空气） |
| 端子压著能力 |
1.2Ton/2.5Ton |
| 检触装置 |
电线有无、电线过载、电线接头、剥皮不良、冲模不良、端子有无、端子过载、气压低下 |
| 本体尺寸 |
1.450L*1.100W*1.900H mm |
| 重量 |
约450kgs |
|
Specifications
| Capacity |
Cutting wire,stripping on one end,stripping both ends,half-stripping on one end,half-stripping both ends,crimping on one end ,crimping both ends twister on one end (optional equipments twister) |
| Power supply |
AC 220V 50/60Hz phases |
| Operation method |
Manual,single cycle and auto(Continuous) |
| Speed |
3000pcs-hr（300mm） |
| Cut length of wire |
56mm～9.999mm(Standard) |
| Cutting accuracy |
Variation within 1mm plus 0.2% |
| Stripping length |
NO.1、NO.2Crimping 0 mm～10mm |
| Stripping deep |
100 action 2.4mm（1action=0.024mm） |
| Wire size |
AWG#18～AWG#34(Standard) |
| Air pressure |
5～6Kgs |
| Crimping force |
1.2Ton/2.5Ton |
| Detectors equipped |
Wire overload,wire load,terminal overload,terminal load,strip miss crimp miss air presser low,Wire joint |
| Dimensions |
1.450L*1.100W*1.900H mm |
| Weight |
Approx.450kgs |
|
|
